Installing the Data Collector

Installation Steps:

1. The printer analytics tool (Data Collector) is bundled with the latest version of AnaRIP. Download the latest AnaRIP software from ricohdtg.com/downloads (Data Collector is packaged with AnaRIP).  The complete AnaRIP and Data Collector Installation process is outlined in the below video:

2. Before proceeding with the installation, close any open instance of AnaRIP

3. Uninstall older data collector, if present on PC

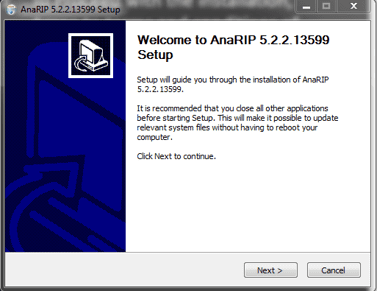

4. Run AnaRIP Software Executable File

AnaRIP-Install-1

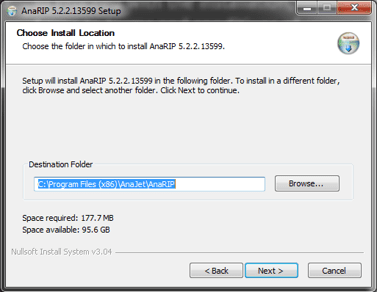

5. Select the folder you wish to Install AnaRIP

AnaRIP-Install-2

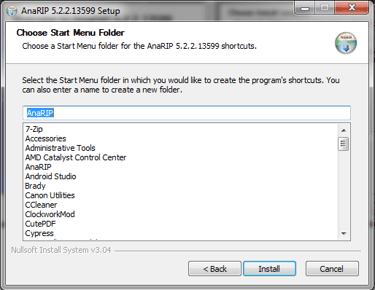

6. Select the start menu folder to store the AnaRIP shortcut

AnaRIP-Install-3

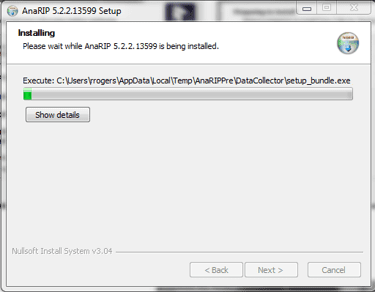

AnaRIP-Install-4

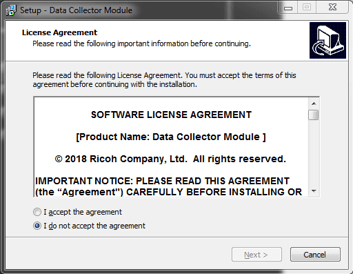

7. Agree to the Data Collector License agreement

Collector-Install-1

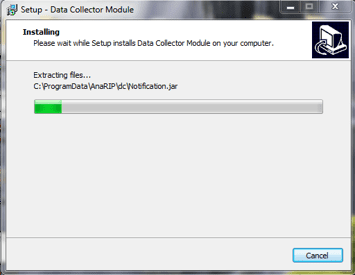

8. Install the Data Collector software

Collector-Install-2

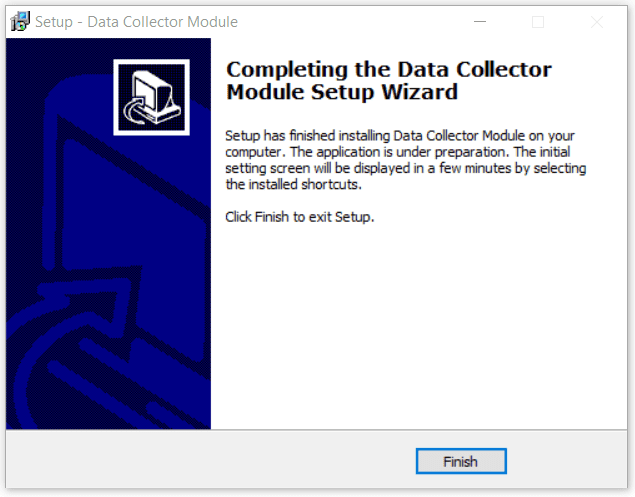

9. Click FINISH button when prompted

Collector-Install-7-1

10. AnaRIP will complete installation.

11. Open the Data Collector Settings Application by clicking on icon (or link below)

Collector-Install-3

http://127.0.0.1/setting

12. Add Printers to the Data Collector

**NOTE** The Data Collector will not activate until you add your printer using the below instructions.

Click the link below for your printer for detailed instructions:
